Automatic Screw Feeder
FJ-ET Series (Fixed eail weidth)
EASY and FAST
The automatic screw feeder for enhancing efficiency and productivity.
※ This product is the result of a transfer of commercial rights from Sony EMC Corporation, effective March 31, 2013.
【Specifications】
| Input Voltage | DC12V 200mA |
|---|---|
| AC adaptor (SQN30W12P-13) |
AC100-240V 50/60Hv 12V, 2.5A AC cable ( accessory ) |
| DC plug | EIAJ Type |
| Outside dimentions | W120 * D155 * H137 mm |
| Mass (Main unit only) | Standard / 1.1Kg RS Version / 1.15Kg |
| Continuous screw supply speed | Applox. 1.5 sec per one screw ( Dependent on actual screw specifications ) |
| Screw transfer method | Inclined rail type |
| Working environment | +10~+30℃(no condensation), Less than 1000m above sea level |
| Storage temperature | -10~+50℃(no condensation) |
| Noise level | 66dB |
| Operating Environment | Indoor use only |
- This apparatus intended for use in industrial environments. The apparatus shall not be used in the residential, commercial and light- industrial environment.
- It must not be connected to public power supply systems. It is only intended for use inside industrial power supply network.
- Standards, specifications and appearance are subject to change due to continual improvements without prior notice.
【Available screw type 】
| Nominal screw sizes | 9 rail variations ( 1.4~5.0 ) |
|---|---|
| Screw type | Machine screw, Tapping screw |
| Shape of screw head (+ shaped screw top) |
JCIS : Pan-head － Type1, Type2, Type3 JIS : Pan-head, binding, truss, brazier, flat, pan-head with collar, w/t spring washer, w/t spring washer and washer |
| Material | Ferrum, or material attaching to magnet |
※Caution : Please note no correspondence to the screw other than the above-mentioned.

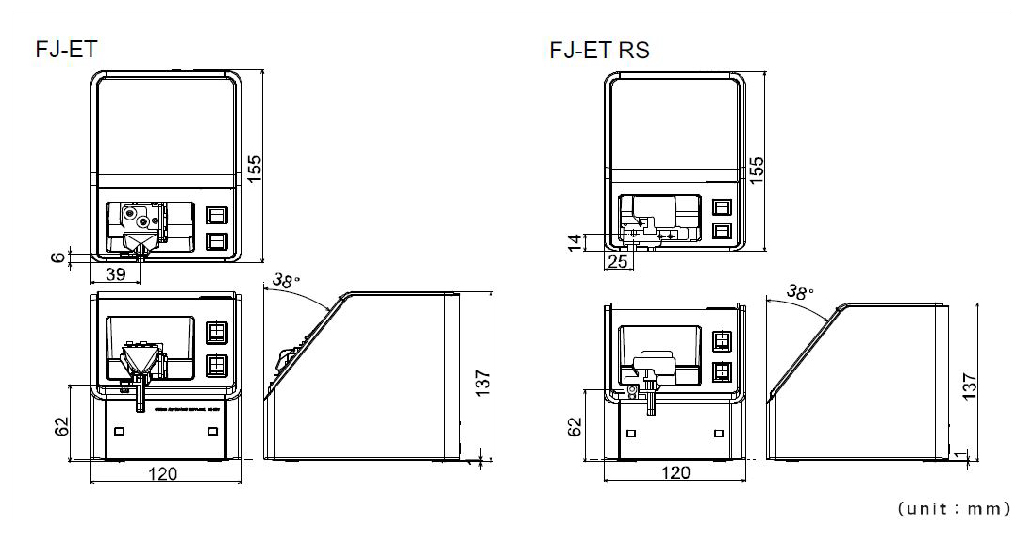

【Dimentions】
Specification and Pictures are for reference only, call our sales for details.

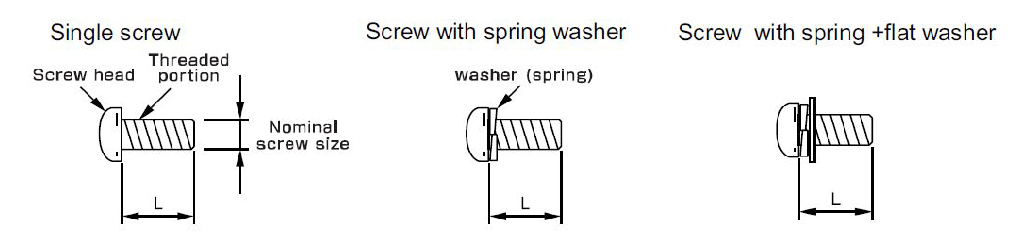

| Standard screw |
Automatic only |
Nominal screw sizes (D) |
Single screw Minimum length |
Screw with spring washer Screw Minimum length |
Screw with spring +flat washer Screw Minimum length |
Screw Maximum length |
|---|---|---|---|---|---|---|
| FJ-ET514 | FJ-ET514RS | 1.4 mm | 1.4 mm | – | – | 18 mm |
| FJ-ET517 | FJ-ET517RS | 1.7 mm | 1.6 mm | – | – | 18 mm |
| FJ-ET520 | FJ-ET520RS | 2.0 mm | 1.8 mm | 3.0 mm | 5.0 mm | 18 mm |
| FJ-ET523 ※ |
FJ-ET523RS ※ |
2.3 mm | 2.5 mm | 4.0 mm | 5.0 mm | 18 mm |
| FJ-ET526 | FJ-ET526RS | 2.6 mm | 2.8 mm | 4.0 mm | 6.0 mm | 18 mm |
| FJ-ET530 | FJ-ET530RS | 3.0 mm | 3.0 mm | 4.0 mm | 6.0 mm | 18 mm |
| FJ-ET535 ※ |
FJ-ET535RS ※ |
3.5 mm | 3.5 mm | 6.8 mm | 8.0 mm | 18 mm |
| FJ-ET540 | FJ-ET540RS | 4.0 mm | 4.0 mm | 6.8 mm | 8.0 mm | 18 mm |
| FJ-ET550 | FJ-ET550RS ※ |
5.0 mm | 5.0 mm | 8.0 mm | 10.0 mm | 18 mm |
※All products are manufactured upon receipt of orders.
【Screw】
